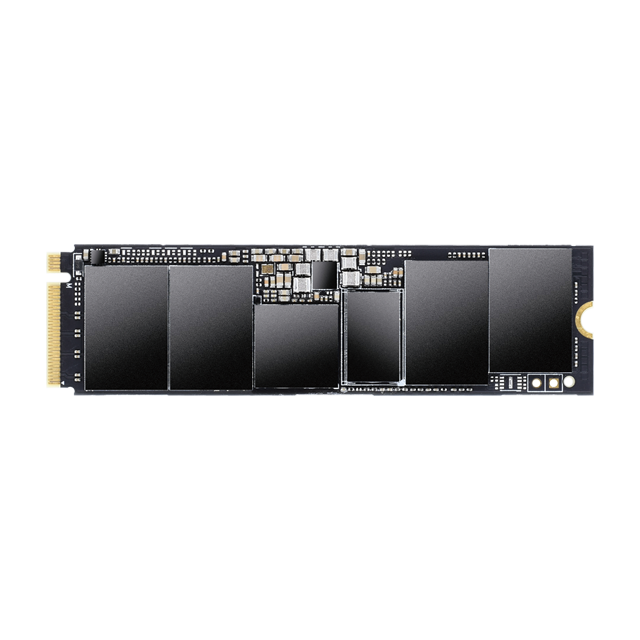

Product Name : AS2280Q4U
Capacity : 512GB / 1024GB / 2048GB
Interface : PCIe Gen4 x4
NAND Flash : 3D NAND
Sequential Read Performance Up to 7,400 MB/s
Capacity : 512GB / 1024GB / 2048GB
Interface : PCIe Gen4 x4
NAND Flash : 3D NAND
Sequential Read Performance Up to 7,400 MB/s
Sequential Write Performance Up to 7,000 MB/s
*The performance may vary due to host hardware, software , usage and storage capacity.
*The performance may vary due to host hardware, software , usage and storage capacity.
IOPs (4K Random Write) Up to 1,000,000 IOPS
Shock 1,500G/0.5msec
MTBF 1,600,000 hours
Standard Operating Temperature 0°C ~ +70°C
Storage Temperature -40 ~ +80°C
Dimensions Single side : (L)80.00 x (W)22.00 x (H)2.25mm
Double side : (L)80.00 x (W)22.00 x (H)3.5mm
With heat sink : (L)80mm x (W)22.9mm x (H)10.8mm
Single side : 7.6g
Double side : 10.2g
Double side : (L)80.00 x (W)22.00 x (H)3.5mm
With heat sink : (L)80mm x (W)22.9mm x (H)10.8mm
Single side : 7.6g
Double side : 10.2g

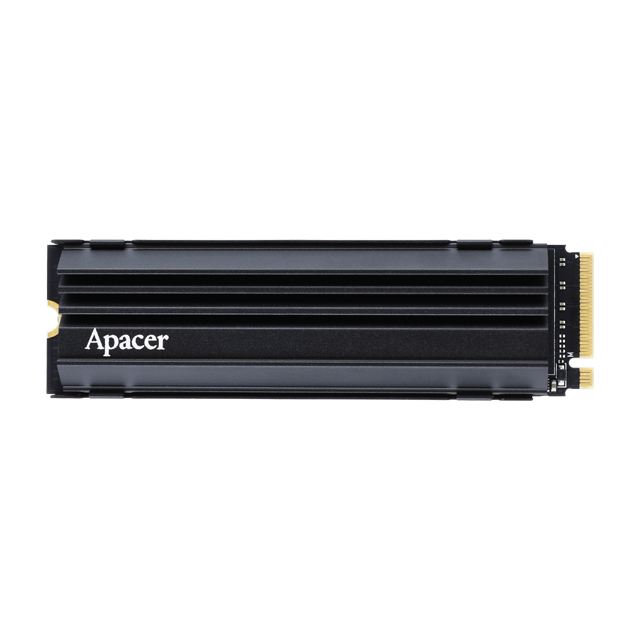

Accessory Heatsink
* Free accessory without warranty.
Certificate CE, FCC, VCCI, BSMI, RoHS
Warranty 5-Year Limited Warranty
*The SSD is based on the TBW or Warranty period.
*The SSD is based on the TBW or Warranty period.
