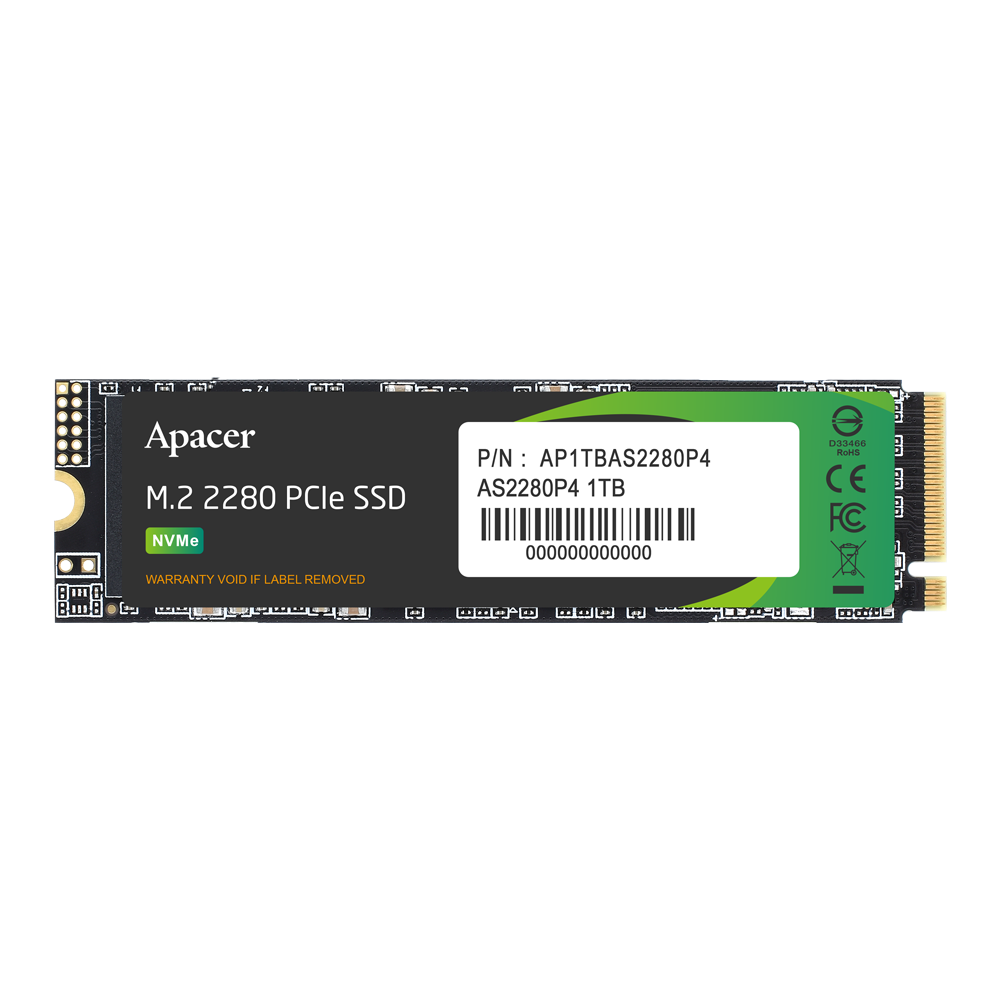

Product Name : AS2280P4
Capacity : 256GB / 512GB / 1024GB
Interface : PCIe Gen3 x4
NAND Flash : 3D NAND
Sequential Read Performance Up to 3,000MB/s
Sequential Write Performance Up to 2,000MB/s
*The performance may vary due to host hardware, software , usage and storage capacity.
Capacity : 256GB / 512GB / 1024GB
Interface : PCIe Gen3 x4
NAND Flash : 3D NAND
Sequential Read Performance Up to 3,000MB/s
Sequential Write Performance Up to 2,000MB/s
*The performance may vary due to host hardware, software , usage and storage capacity.
IOPs (4K Random Write) Up to 360,000 IOPS
ECC Support Up to 72bit/1KB
Shock 1,500G/0.5msec
Vibration 7~800Hz, 3.08Grms
Low Power Consumption 275/80mA
(Active/Idle)
(Active/Idle)
MTBF 1,500,000 hours
Humidity 5% ~95%
Standard Operating Temperature 0°C ~ +70°C
Storage Temperature -40 ~ +85°C
Dimensions (L)80 x (W)22 x (H)2.25mm
Certificate CE, FCC, VCCI, BSMI, RoHS
Warranty 3 Years
*The SSD is based on the TBW or Warranty period.
*The SSD is based on the TBW or Warranty period.
