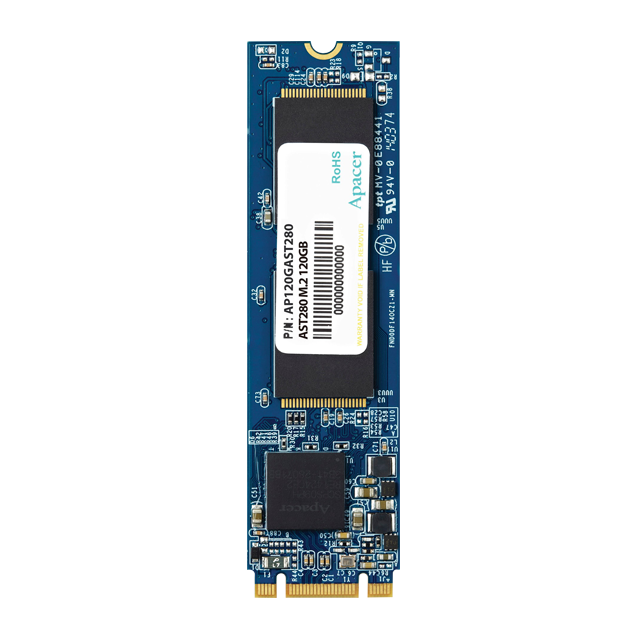

Product Name : AST280
Capacity : 120GB / 240GB / 480GB
Interface : SATA 3.2 (6Gb/s)
NAND Flash : 3D NAND
Sequential Read Performance 120GB: Up to 500MB/s
240GB: Up to 520MB/s
480GB: Up to 520MB/s
Capacity : 120GB / 240GB / 480GB
Interface : SATA 3.2 (6Gb/s)
NAND Flash : 3D NAND
Sequential Read Performance 120GB: Up to 500MB/s
240GB: Up to 520MB/s
480GB: Up to 520MB/s
Sequential Write Performance 120GB: Up to 470MB/s
240GB: Up to 495MB/s
480GB: Up to 495MB/s
240GB: Up to 495MB/s
480GB: Up to 495MB/s
IOPs (4K Random Write) 120GB Up to 23,000
240GB Up to 84,000
480GB Up to 84,000
240GB Up to 84,000
480GB Up to 84,000
ECC Support Up to 72bit/1KB
Shock 1,500G/1.0msec
Vibration 5~800HZ/3.13G
Low Power Consumption 120GB：417/81mA
(Active/Idle) 240GB：561/82mA
(Active/Idle) 240GB：561/82mA
MTBF 1,500,000 hours
Humidity 5% ~95%
Standard Operating Temperature 0°C ~ +70°C
Storage Temperature -40 ~ +85°C
Dimensions (L)80 x (W)22 x (H)3.8 mm
Certificate CE, FCC, VCCI, BSMI, RoHS
Warranty 3 Years
*The SSD is based on the TBW or Warranty period.
*The SSD is based on the TBW or Warranty period.
